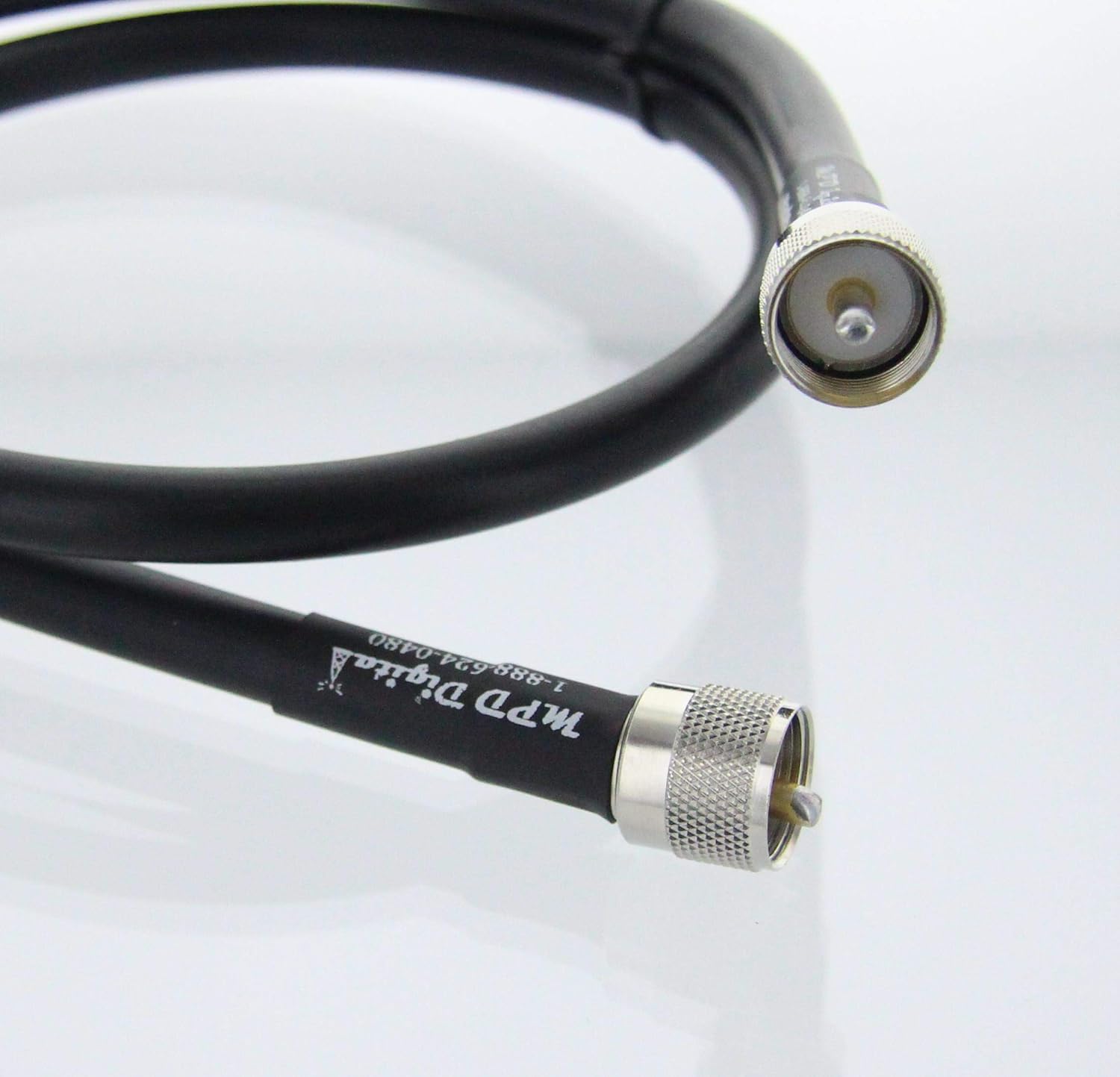

50 ft Black 50 Ohm RF Coaxial Cable with UHF PL259 Male Connectors J7731

50 ft Black 50 Ohm RF Coaxial Cable with UHF PL259 Male Connectors J7731

$22.95 $99.94
Skip to product information
50 ft Black 50 Ohm RF Coaxial Cable with UHF PL259 Male Connectors J7731
  • 50 ft Black 50 Ohm RF Coaxial Cable with UHF PL259 Male Connectors J7731
  • 50 ft Black 50 Ohm RF Coaxial Cable with UHF PL259 Male Connectors J7731
  • 50 ft Black 50 Ohm RF Coaxial Cable with UHF PL259 Male Connectors J7731
  • 50 ft Black 50 Ohm RF Coaxial Cable with UHF PL259 Male Connectors J7731
50 ft Black 50 Ohm RF Coaxial Cable with UHF PL259 Male Connectors J7731

50 ft Black 50 Ohm RF Coaxial Cable with UHF PL259 Male Connectors J7731

$22.95 $99.94
Shipping calculated at checkout.
Cable type: MPD400 Black has the same loss characteristics and performance as Times Microwave LMR400 but with more flexibility. MPD-400 SuperFlex 50 ohm Coax Assemblies have a PVC jacket and un-bonded aluminum tape that helps facilitate extra flexibility and maintain the bend radius, all without the extra losses that normally occur with standard polyethylene jacketed coaxial cables. Connects Radio Transmitters to Antenna.
Connector type: PL-259 Male UHF coax cable connectors - Connects Antennas, Receivers, Scanners, Meters and Radio transmitters. This coax is ideal for a drop in replacement for other comparable LL-400 ultra-flex cables where installation, flexibility and tight quarters are a factor.
Ultra low loss: This low loss transmission line can be used in almost any application where handling characteristics and when improved Shield and low loss is required.
Outer jacket material: Flexible UV Proof, Non-Contaminating PVC, Outer Diameter: .405 (10.3mm) nom., SRL: per MIL-C-17/74 - Foam Dielectric Aids Flexibility
Warranty: 60 DAY RETURNS - plus a 1 Year Limited Lifetime Warranty for defects on all MPD Digital cable assemblies from Date of Purchase. Made in USA, Assembled by MPD Digital.

MPD-400 SuperFlex 50 ohm Coax Assemblies have a PVC jacket and un-bonded aluminum tape that helps facilitate extra flexibility and maintain the bend radius, all without the extra losses that normally occur with standard polyethylene jacketed coaxial cables. Connects Radio Transmitters to Antenna. MPD-400PVC Super Flex is designed to be extra flexible with the tightest bend radius without the loss and is more flexible than the standard polyethylene jacketed LMR. This coax is ideal for a drop in replacement for other comparable LL-400 ultra-flex cables where installation, flexibility and tight quarters are a factor. Manufactured to provide an extremely low loss transmission line to provide optimum RF connectivity. MPD coaxial Antenna Cables have proven themselves in Military, EMS, and harsh environments world wide. MPD Digital manufactures cable assemblies for Amazon.com, OEMs and Individual users. We can customize cables for any RF use and will be happy to list any cable on Amazon on request. All cables are manufactured under MPD Digital Trade Marks and Pending Applicable Patents.

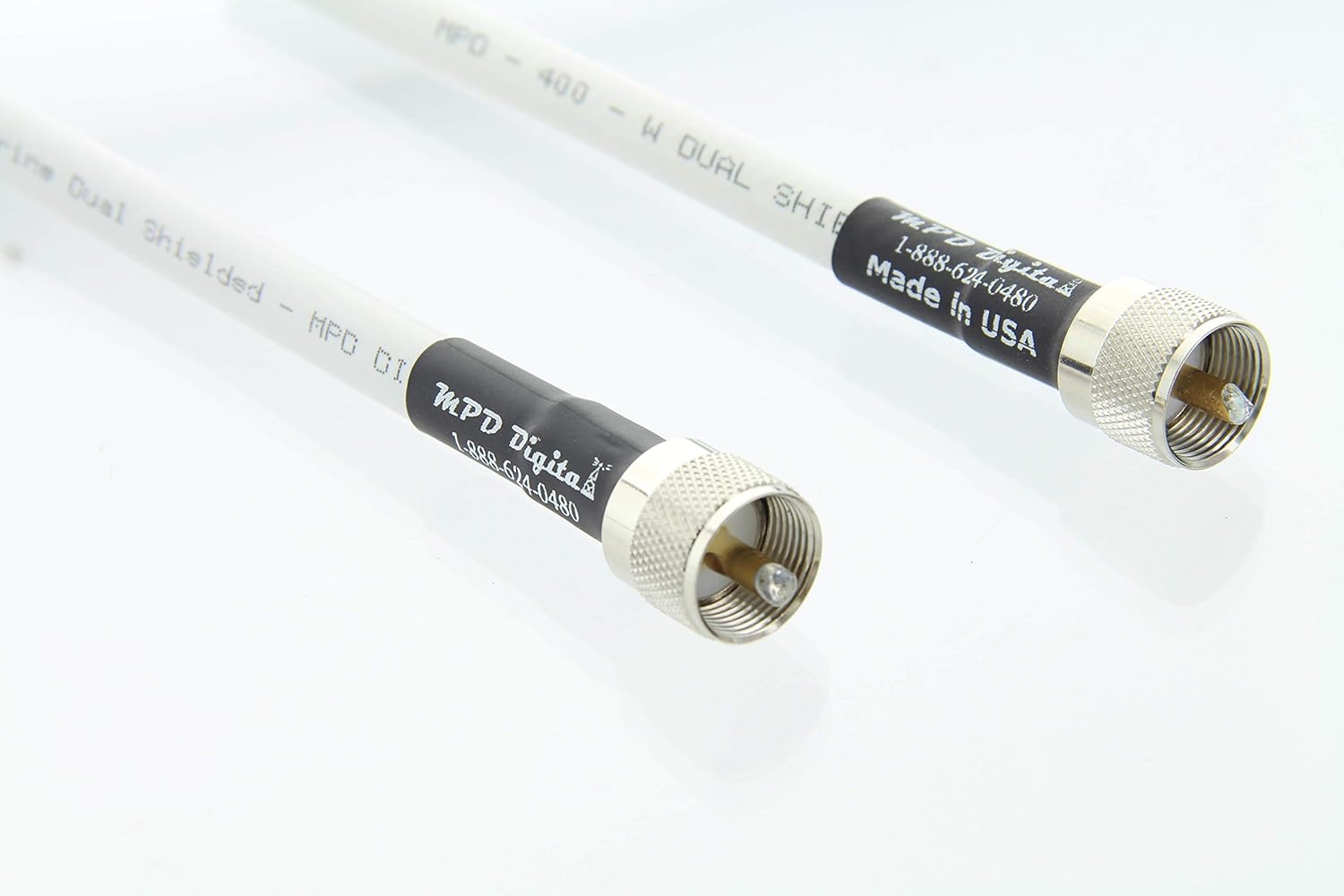

RG-213 MPD-400PVC White Jacketed SuperFlex MPD-400PVC Black Jacketed SuperFlex Times Microwave LMR-400 UF (UltraFlex)
Overall Diameter (OD) in inches = 0.405 ✓ ✓ ✓ ✓
Bend Radius 1.9 inches 1.2 inches 1.2 inches 1 inch
dB Loss per 100 Feet @ 500 MHz 4.7 dB Loss 2.85 dB Loss 2.85 dB Loss 3.4 dB loss
dB Loss per 100 Feet @ 2000 MHz 10.7 dB Loss 6.00 dB Loss 6.00 dB Loss 7.2 dB Loss
